AVR4PVK - AVR module for PVK40

AVR4PVK is an optional accessory for the PVK40 development board. It allows to use an ATmega64 microcontroller from the AVR family by Atmel with PVK40.

PVK40 - feature-rich development board has been originally intended for use with 40-pin DIP Microchip PIC^® microcontrollers. However, many users prefer AVR micros by Atmel and so we decided to make this development board accessible also for them by creating the AVR4PVK module.

The ATmega64-16 microcontroller pins are connected to AVR4PVK pins to mimic the 40-pin PIC MCU pinout as close as possible. There is also a separate crystal on the module to avoid too long signal traces. Another crystal (32 768 Hz) can be soldered by the user. There is an In-System programming connector on the module which can be used with any suitable AVR programmer/debugger, recommended programmer is PRESTO or FORTE.

 Larger image

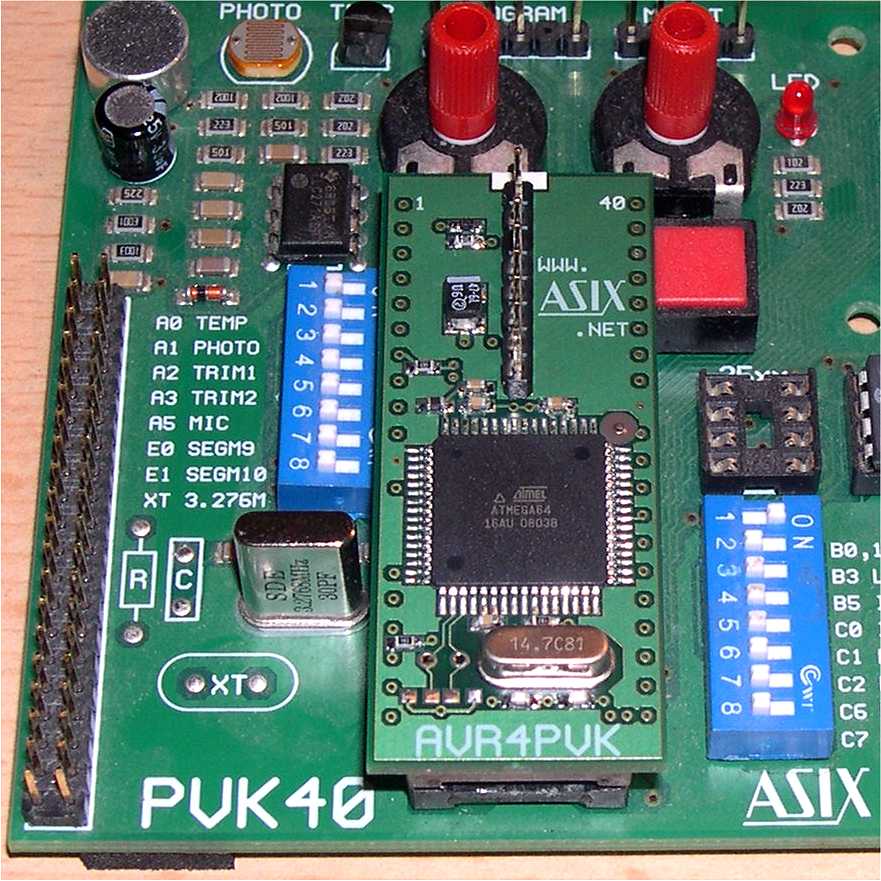

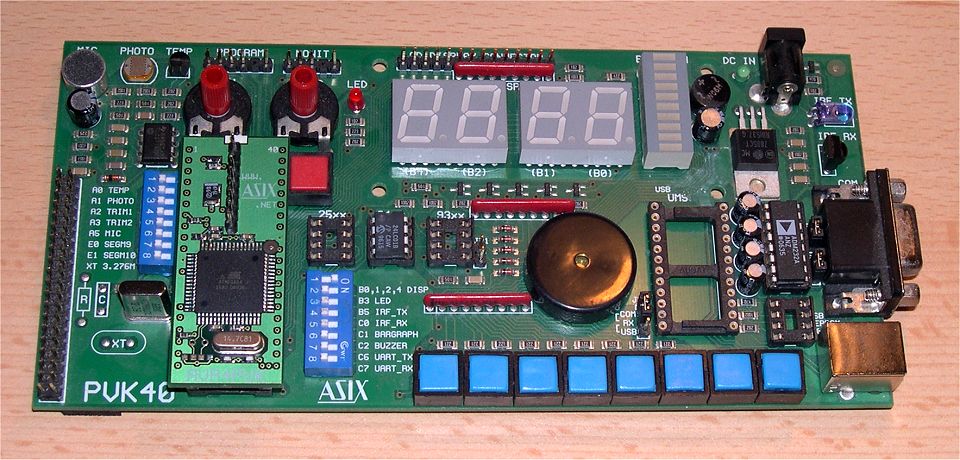

 PVK40 with AVR4PVK

Download

• User's Guide (PDF, 282 KB)
• Software examples in C language: avr4pvk_examples_2008-07-15.zip (ZIP, 47 KB)
• Overview of software examples for all ASIX boards (opens in separate window)
